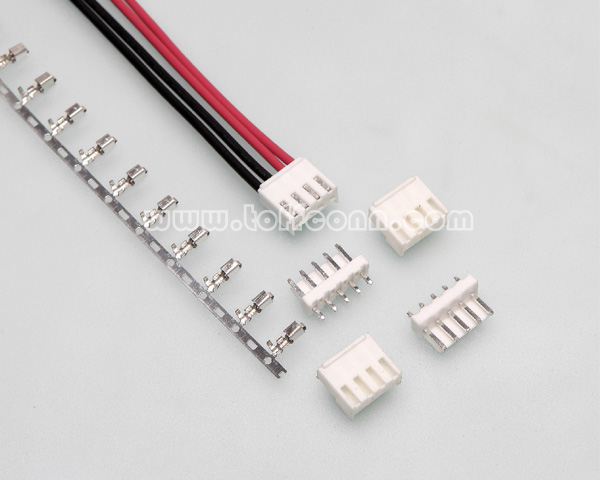

SPECIFICATIONS
Space: 3.96mm (0.156'') pitch
Pole: 1-16
Applicable wires：AWG#18-22
Voltage rating: 250V AC, DC
Current rating: 7A AC, DC
Withstanding voltage: 1500V AC/minute
Insulation resistance: 1000MΩ min.
Temperature range: -25℃ to+85℃（Including temperature rise in applying electrical current）
Applicable PC board thickness: 1.6mm (0.063'')
Contact resistance: Initial value/10mΩ max.
After environmental testing/20mΩ max
