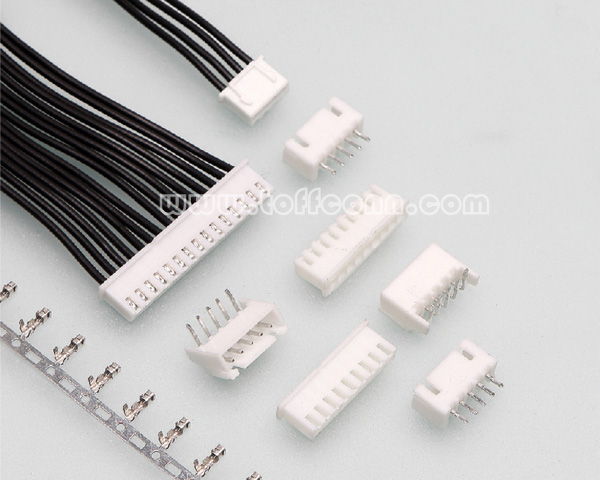

| ²úÆ·Ãû³Æ£ºXH Connector |
| Ïêϸ£º |
SPECIFICATIONS
Space: 2.5mm (0.098'') pitch
Pole: 2-20
Applicable wires£ºAWG#22-30
Voltage rating: 250V AC, DC
Current rating: 3A AC, DC
Withstanding voltage: 1000V AC/minute
Insulation resistance: 1000M¦¸ min.
Temperature range: -25¡æ to+85¡æ£¨Including temperature rise in applying electrical current£©
Applicable PC board thickness: 1.6mm (0.063'')
Contact resistance: Initial value/10m¦¸ max.
After environmental testing/20m¦¸ max
 |
|
|
|
