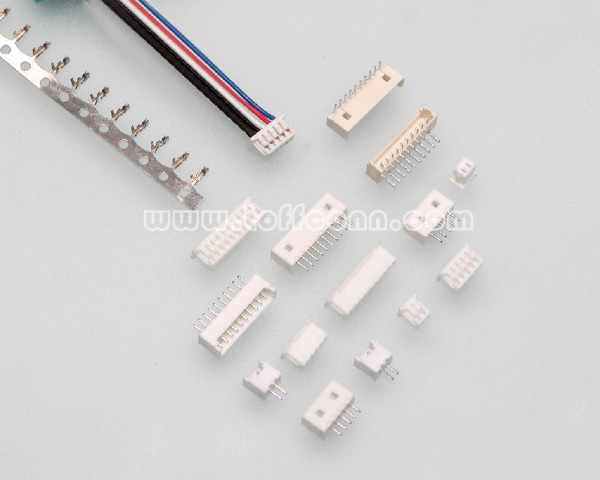

Product name: SH Connector
Detailed detailed:
SPECIFICATIONS Space: 1.25mm (0.049'')pitch Pole: 2-15 Applicable wires:AWG#28-32 Voltage rating: 250V AC, DC Current rating: 1A AC, DC Withstanding voltage: 250V AC/minute Insulation resistance: 100M Ω min. Temperature range: -40℃ to+85℃(Including temperature rise in applying electrical current) Contact resistance: Initial value/10mΩ max. After environmental testing/20mΩ max
Application products:
Application industry:
Optional:
Product advantage:
