Electronic Wiring Your present position: Products > Electronic Wiring

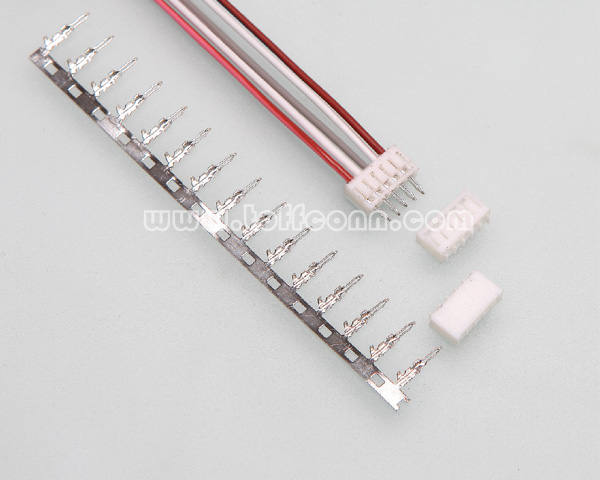

Product name: SAN/JB20 Connector
Detailed detailed:

SPECIFICATIONS
Space: 20.mm (0.079'') pitch
Pole: 2-15
Applicable wires:AWG#22-28
Voltage rating: 250V AC, DC
Current rating: 2A AC, DC
Withstanding voltage: 800V AC/minute
Insulation resistance: 1000MΩ min.
Temperature range: -25℃ to+85℃(Including temperature rise in applying electrical current)
Applicable PC board thickness: 1.6mm (0.063'')
Contact resistance: Initial value/10mΩ max.
After environmental testing/20mΩ max

Application products:
Application industry:
Optional:
Product advantage:
Related products
LV8.0 Connector
L Connector
V5.0 Connector
VH Connector
3961 Connector
DOBUY Connector
2510 Connector
SM Connector
