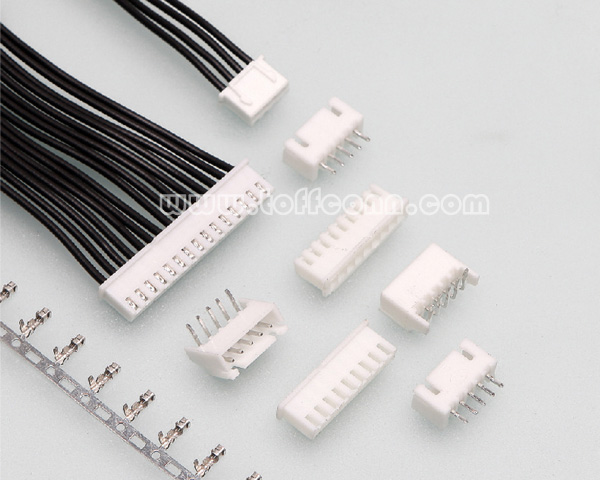

| Product name: XH Connector |
| Detailed detailed: |
SPECIFICATIONS
Space: 2.5mm (0.098'') pitch
Pole: 2-20
Applicable wires：AWG#22-30
Voltage rating: 250V AC, DC
Current rating: 3A AC, DC
Withstanding voltage: 1000V AC/minute
Insulation resistance: 1000MΩ min.
Temperature range: -25℃ to+85℃（Including temperature rise in applying electrical current）
Applicable PC board thickness: 1.6mm (0.063'')
Contact resistance: Initial value/10mΩ max.
After environmental testing/20mΩ max
 |
|
|
|
