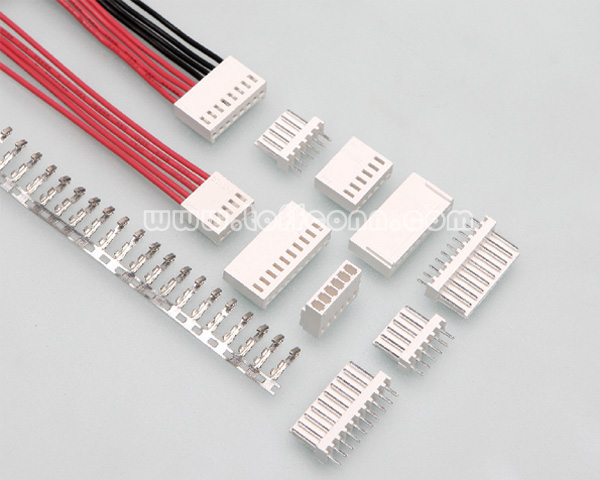

Product name: 2510 Connector
Detailed detailed:
SPECIFICATIONS Space: 2.54mm (0.100'') pitch Pole: 2-20 Applicable wires：AWG#22-30 Voltage rating: 250V AC, DC Current rating: 3A AC, DC Withstanding voltage: 1000V AC/minute Insulation resistance: 1000MΩ min. Temperature range: -25℃ to+85℃（Including temperature rise in applying electrical current） Applicable PC board thickness: 1.6mm (0.063'') Contact resistance: Initial value/10mΩ max. After environmental testing/20mΩ max
Application products:
Application industry:
Optional:
Product advantage:
